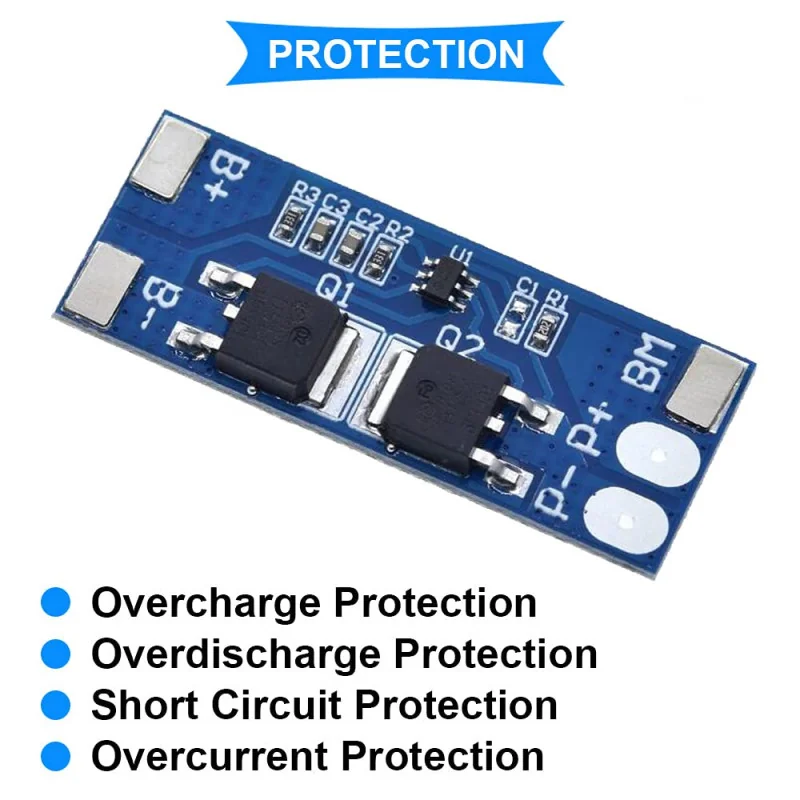

2S 8A 7,4V PCB BMS 18650 Li-ion Lithium Battery Protection Board (Max 10A, 8,4V)

Description:
Over charge voltage: 4.25 V ± 0.05 V.
Over discharge voltage: 2.9 V ± 0.05 V.
Maximum working current: 8 A.
Maximum instantaneous current: 10A.
Quiescent current: less than 10uA.
Life cycle: more than 50,000 hours.
Resistance: less than 300 mΩ.

Description:
Over charge voltage: 4.25 V ± 0.05 V.
Over discharge voltage: 2.9 V ± 0.05 V.
Maximum working current: 8 A.
Maximum instantaneous current: 10A.
Quiescent current: less than 10uA.
Life cycle: more than 50,000 hours.
Resistance: less than 300 mΩ.

Protection: overcharge protection, overdischarge protection, short circuit protection, overcurrent protection.

Note:Note:Strictly according to the diagram wiring: B+: connected battery positive, B-: connect to battery negative, BM:connected battery 1 and battery 2 before the join point, P+:battery output input positive, P-:battery output input negative, Otherwise it will cause damage to the chip.

Package includes:
5 x 2S 8A 7.4V lithium battery protection board.
1 x 39.inch/1 m 0.15 x 8 mm nickel strip.
