- 🔌 Double Canal, Triple Sortie : Modes indépendant, série et parallèle.
- 🔋 Mode Série : Tension max 60V, courant max 5A.
- ⚡ Mode Parallèle : Tension max 30V, courant max 10A.
- 📏 Plage de Tension/Courant : Jusqu'à 30V 5A par canal.
- 📊 Affichage LED : Écran numérique 4 chiffres.
- 🔧 Sortie Fixe : Options 2.5V, 3.3V, 5V.
- 🛡️ Protection Complète : Contre courts-circuits, surcharges et surchauffe.
- 🛠️ Applications : Réparation, maintenance, laboratoires.

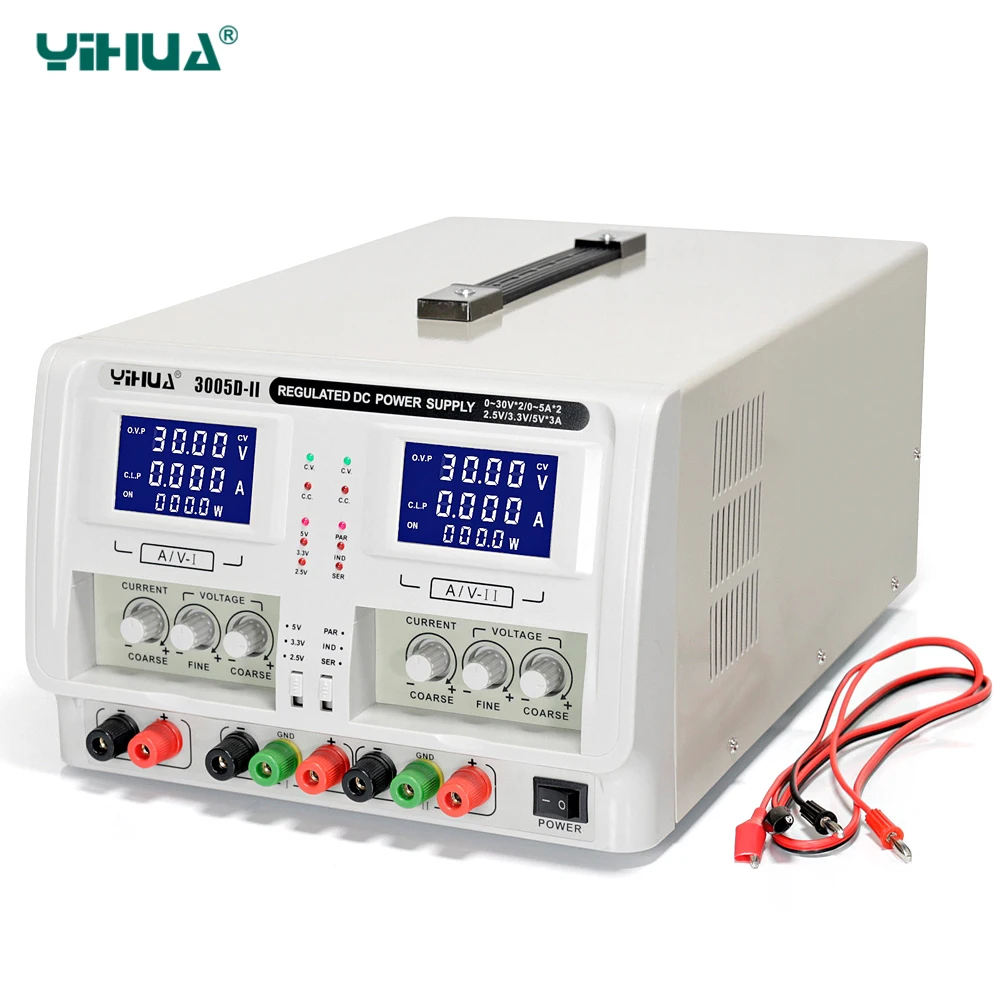

YIHUA 3005D-II Regulated Laboratory DC Power Supply Dual Channel Triple Output 30V 5A Voltage Regulators Adjustable Power Supply
Feature:
1.The 3005D-II power supply is a dual-channel DC power supply with continuously-adjustable current and voltage, a large- screen LED backlit display, and builtin knobs to help operators eliminate hidden dangers resulting from faulty adjustment.
Channel II independent operations feature automatic tracking in series or in parallel. The third fixed output features
selection between 2.5V, 3.3V, and 5V. Stunning in appearance and outstanding in performance, the machineis suitable for
technology product development and use in laboratories, teaching, and electronics production lines as well as in essential communications industry equipment.
2. Independent Operations Mode ,it means the machine have 2 groups 30V 5A output voltage and current.
3. Series Tracking Mode,it means the machine max output voltage is 60V ,the max output current is 5A.
4. Parallel Tracking Mode ,it means the max output voltage value is 30V,the output current is 10A.
5. The device has Fixed output,”SER” mode ,can set fixed output,(the voltage fixed output value is 2.5V,3.3V,5V)
6. It features 3 positive and negative output voltage and current values. The 3 outputs can work simultaneously
7. 4digit display for accurate displaying of current values,precise to mA value,the machine is built with SMT manufacturing and the latest technology.
8.The machine inside transformer is copper,and inside have fan ,when the machine work temperaute
over 45 degree,the fan will be work,it is good for heating radiation,can prolong the machine life.
PRODUCT SPECIFICATIONS:
- Model: YH-3005D-II
- Compact Design
- SMT Construction
- Dual LED 4 Digital Tube Display
- Independent Operations Mode(2X 30V 5A)/ Series Tracking Mode（60V 5A）/ Parallel Tracking Mode（30V 10A）
A 2.5V/3.3V/5V Fixed Output Function
- High Stabilized Output Voltage
- Current-limiting Buck
- Short Circuit Protection
- Over Loading and Voltage Protection
- Overheating Protection
- Low noise
- CE Certification
Channel II Independent Mode
Output Voltage : continuously adjustable between 0-30V
Output Current : continuously adjustable between 0-5
Power Effect:
CV≤0.01%+1mV CC≤0.2%+1mA
Load Effect:
CV≤0.01%+5mV (I≤3A) CC≤0.2%+5mA (I≤3A)
CV≤0.01%+7mV (I>3A) CC≤0.2%+10mA (I>3A)
Ripple Noise (5Hz-1MHz) :
CV≤0.5mVrms (I≤3A) CC≤3mArms (I≤3A)
CV≤1mVrms (I>3A) CC≤5mArms (I>3A)
Voltage Accuracy: ±0.5%rdg+2 characters
Voltage Accuracy: ±0.5%rdg+2 characters
Display Resolution: ±0.5%rdg+2 characters
Channel III Output Characteristics
Rated Output Voltage : 2.5V/3.3V/5V±0.1
Rated Output Current : 3A
Power Effect: ≤1mV
Load Effect: ≤10mV
Ripple Noise(5Hz-1MHz): ≤1mVrms
Tracking Characteristics
Characteristics Operating in Series
Power Effect: ≤1mV
Load Effect: ≤30mV
Ripple Noise(5Hz-1MHz): ≤1mVrms
Characteristics Operating in Parallel
Power Effect: ≤1mV
Load Effect: ≤20mV
Ripple Noise(5Hz-1MHz): CV≤0.5mVrms (I≤6A) CV≤1mVrms (I>6A)
Safety Requirements:
HV Test: Leakage current ≤1mA (Test condition: input to ground of 1700VAC/2S)
Insulation Test: Insulation resistance ≥100MΩ (Test condition: input to ground of 500VDC/5S)
