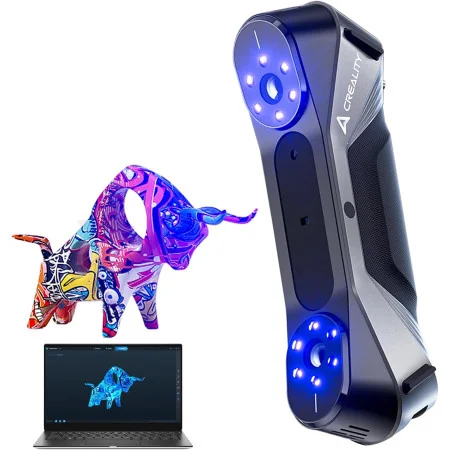

CR-SCAN RAPTOR 3D SCANNER
🎯 Technologie hybride Blue Light + NIR : laser bleu 7 lignes + infrarouge structuré
🔥📏 Précision jusqu’à 0,02 mm + ligne laser 0,1 mm pour des détails nets
✅📐 Scanne 5×5×5 mm → 2000×2000×2000 mm (petit au très grand)
🧩⚡ Jusqu’à 60 fps (laser bleu) + 20 fps (NIR) pour un scan rapide
🚀 Couleur 24-bit + mode visage/corps : textures réalistes + scan corps en ~2 min 👤✨
: Vous pouvez voir les tarifs d'expédition et estimations de livraison cliquant ici
: Retour sous 7 jours avec conditions, cliquez pour plus de détails
Creality CR-Scan Raptor – 3D Scanner (Blue Light Laser + NIR)
The Creality CR-Scan Raptor is a versatile 3D scanner that combines blue light laser and NIR in one device. With high precision, it captures small, medium, and large objects to meet a wide range of needs.
Compact size for more flexibility
Portable and lightweight (372 g), it can be operated with one hand for comfortable scanning even during long projects.
The Raptor features an anti-slip surface and a removable neck cord for safer, more flexible operation.
Large, medium or small?
Thanks to the combination of blue line lasers and structured infrared light, the CR-Scan Raptor supports a wide scan range: from 5 × 5 × 5 mm³ up to 2000 × 2000 × 2000 mm³. It can handle small figures, bolts, faces, human bodies, car parts, and more.
Measurement accuracy with blue light laser lines
Scans with 7 parallel blue light laser lines. Each line is ultra-thin (up to 0.1 mm) to capture sharp edges and fine details, delivering metrological accuracy of up to 0.02 mm.
- Temperature compensation algorithm improves temperature stability for consistent accuracy.
- High-performance structure supports close-up and distance scanning with strong stability in high/low temperatures: 20 mm lens (large depth of field), low distortion lens (< 5‰), 9-glass-lens system, metal lens barrel and mount.
Structured infrared light for scans without markers or scan sprays
Uses 3D imaging with speckle matching to reduce the need for markers, enabling fast data capture even on complex parts.
Even without scanning spray, it can scan cars, car parts, tires, and other black objects and metal parts.
A combination of blue and white light
LED texture lights arranged in a circular pattern deliver more realistic results: blue light supports laser-line scanning, while white light boosts brightness for colour textures.
Impressive speed
Scanning speed up to 60 fps (blue light laser) and up to 20 fps (NIR) for fast high-resolution capture.
Face and body algorithm
Dedicated face and body mode with a facial imaging algorithm for improved detail capture. Full-body scan can be completed in about 2 minutes.
Additional features
- 24-bit colour Full-colour scanning with 12 circular LED texture lights for true-to-life colour reproduction.
- Intuitive buttons and a ring indicator light showing scanning status in real time.
- Smoother scanning via anti-shake protection (One-Shot 3D imaging technology) and fast retracing speed.
- High-precision calibration plate made of glass substrate.
- Applications: metrological testing, reverse engineering, car parts manufacturing, medical technology, mould making, action figures, AR/VR, and more.
Technical specifications
| Item | Blue light (7-line blue light laser) | NIR (structured infrared light) |
|---|---|---|
| Accuracy | up to 0.02 mm at a distance of 100 mm | up to 0.1 mm |
| 3D resolution | 0.02–2 mm | 0.1–2 mm |
| Scan speed | up to 60 fps | up to 20 fps |
| Min. scan volume | 5 × 5 × 5 mm | 150 × 150 × 150 mm |
| Working distance | 150–400 mm | 170–1000 mm |
| Colour Mapping | Yes | |
| Alignment modes | marker | Marker, geometry, texture |
| 3D imaging camera resolution | 1920 × 1200 | |
| Additional coloured light | 12 white LEDs | |
| Improved marker detection | 12 infrared LEDs | |
| Laser safety | class 1 | |
| IMU | Yes | |
| Input voltage | 12V, 2A | |
| Interface | Type C, USB 3.0 | |
| Operating system | Windows 10/11 (64 bit), macOS | |
| Device size | 215 × 50 × 74 mm | |
| Device weight | 372 g | |
