433MHZ Super regenerative module Wireless Transmitter Module Burglar Alarm+ Receiver Module In stock
The receiving module technology parameters
The actual working distance: 50-100 M
Working voltage: DC5V static current: 4MA
The receiving frequency: 433.92MHZ
The receiver sensitivity: 105DB
Size: 30*14*7mm external antenna: 32CM single core wire, wound into a spiral
Emitter technology parameters
Product type: MX-FS-03V
Transmitting distance: 20-200 meters (voltage is different, the effect of different) working voltage: 3.5-12V size: 19*19mm
Working mode: AM transmission rate: the 4KB/S emission power: 10mW
The emission frequency: 433M
The external antenna: 25cm common multiple cores or single core cable
From left to right Pinout: (DATA; VCC; GND)
The receiving module technology parameters
The actual working distance: 50-100 M
Working voltage: DC5V static current: 4MA
The receiving frequency: 433.92MHZ
The receiver sensitivity: 105DB
Size: 30*14*7mm external antenna: 32CM single core wire, wound into a spiral
Emitter technology parameters
Product type: MX-FS-03V
Transmitting distance: 20-200 meters (voltage is different, the effect of different) working voltage: 3.5-12V size: 19*19mm
Working mode: AM transmission rate: the 4KB/S emission power: 10mW
The emission frequency: 433M
The external antenna: 25cm common multiple cores or single core cable
From left to right Pinout: (DATA; VCC; GND)

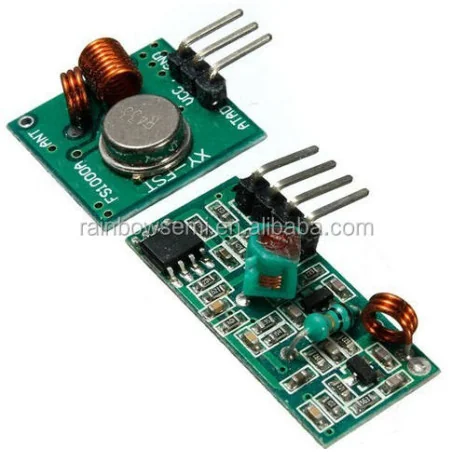

Product's Photo show:
